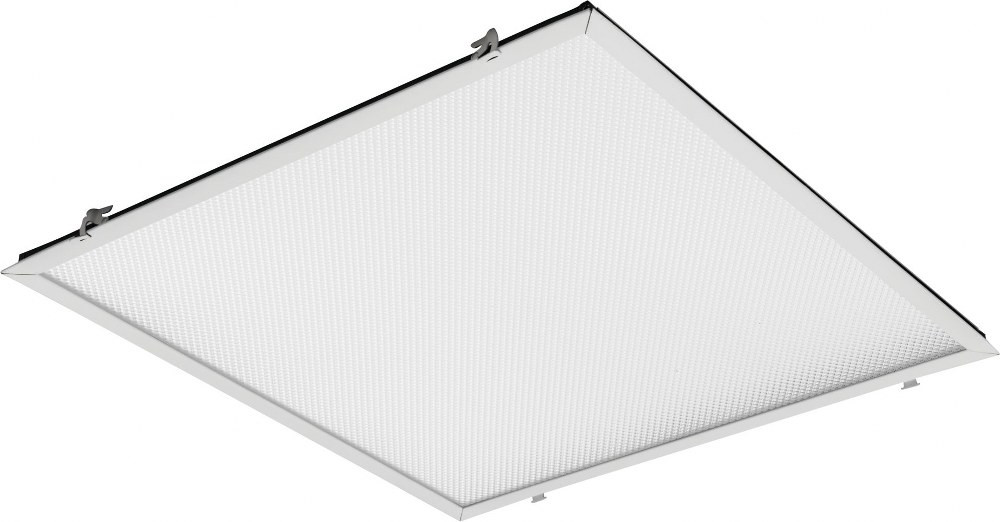

The 2 ft. x 2 ft. LED Prismatic Lens Lay-in Troffer from Lithonia Lighting represents the best quality general purpose LED lighting available in the industry. It is the energy-efficient, virtually maintenance-free alternative to conventional recessed fluorescent fixtures in grid ceiling commercial applications like offices, retail spaces and schools. It offers superior light output, improved visual appearance and it is fully dimmable with a 0 - 10-Volt dimmer.

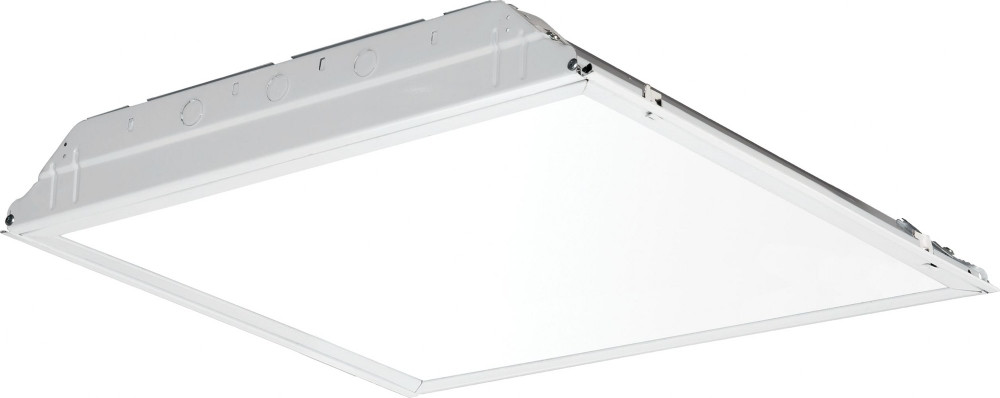

Housing formed from 22 gauge cold-rolled steel. Smooth hemmed sides and smooth inward formed end flanges for safe handling.
Long-life LEDs, coupled with high-efficiency drivers, provide superior quantity and quality of illumination for extended service life. 80% LED lumen maintenance at 60,000 hours. Output 3,700 Lumens with 4,000K cool white color temperature.
LED drivers deliver dimming from 0-10V control signal. 5% dimming level.
LED boards include plug-in connectors for easy replacement or servicing. Suitable for direct insulation contact.
Highly transmissive pattern #12 lens (0.095" thickness), diffuses light source without compromising output.
CSA certified to U.S. and Canadian standards. Damp listed.
- Mounting Direction: Down
- Shade Included: TRUE
- Dimmable: TRUE
- Warranty: 5 Years Limited
- Lumens: 3880
- Shape: Square
- Bulb Life Span: 60,000 Hours
- CRI: 82
- Color Temperature: 4000
CSA Approved
Damp Rated
